Typical Water Softener Components | How a Water Softener Works

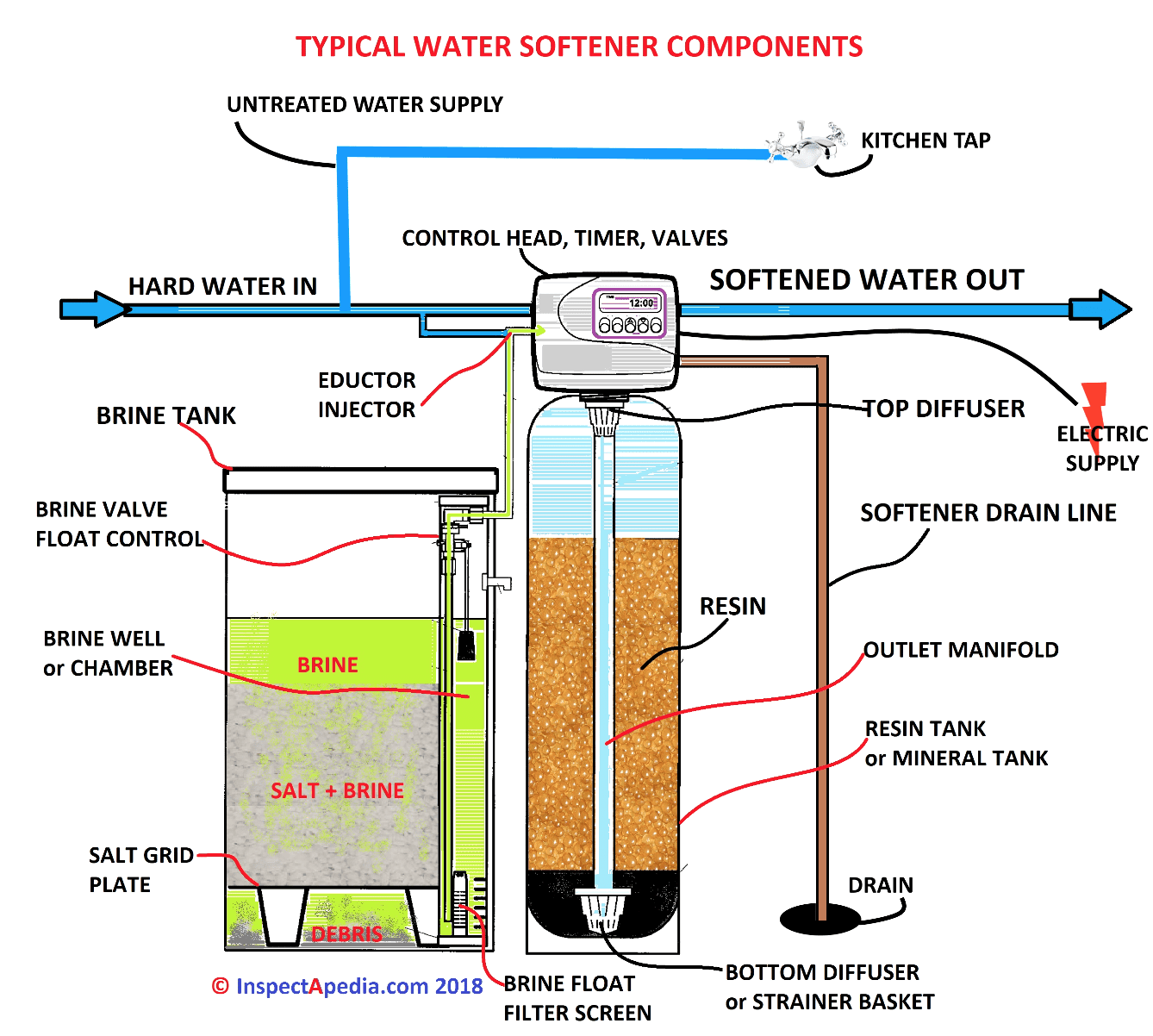

Understanding the components of a water softener system is essential for proper installation and maintenance. This diagram details the internal parts of a water softener, including the brine tank, resin tank, top and bottom diffusers, control head, and the process of converting hard water into soft water. A properly functioning water softener protects plumbing, extends appliance life, and improves overall water quality.
